SHBN type wireless nut runner
High-speed, lightweight, high-precision tool
- Impact mode
Impact automatic adjustment function
Batch count function - Reliable transfer of tightening data
- No need to wait for connection when replacing the battery
- Power saving tightening tool
- Various tightening functions
- Double tool count
- Tool LED supports workers
Station controller
- Multiple tools can be controlled

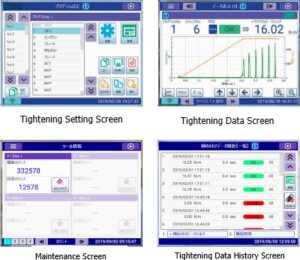

- High-performance station controller
Large-capacity tightening history memory
USB backup function
Supports LAN connectionFrom the USB port, you can back up the tightening settings, history, etc. to the USB memory.
Compatible with various communication networks

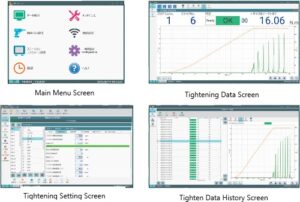

Station controller terminal (SCT).
- Specification
tool
| item | specification |
| Model | SHB-T1-016P |
| Maximum tightening torque | 16N · m (impact mode) |
| Maximum no-load rotation speed | 2000rpm |
| Wireless specifications | Wireless LAN 2.4GHz |
| weight | 1.2kg (excluding battery) |
Battery
| item | specification |
| Model | SHB-BT-25 |
| type | lithium ion |
| Voltage | 25.2V |
| capacity | 2.0Ah |
| weight | 540g |
Station controller
| item | specification |
| Model | SHB-SC |
| interface | I / O (8 points each for input and output) x 2 ports (up to 4 ports depending on the option ) RS232C x 2 ports ( up to 4 ports depending on the option) USB x 2 ports Ethernet x 1 port Field network (option) |
| Power supply | AC100 ~ 240V 50 / 60Hz (AC adapter) |
| Maximum power consumption | 360W |
| weight | 1.3kg |
Charger
| item | specification |
| Model | SHB-BC |
| charging time | 80% or more in about 60 minutes |
| Protective function | Overcharge prevention |
| Display function | LED display (3 colors / 6 levels) |
| Power supply | AC100 ~ 240V 50 / 60Hz |
| weight | 835g |
* Please contact us for the details of the product model.
Dimensions

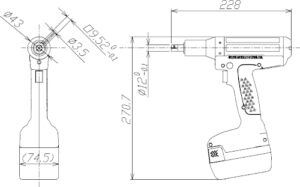

Pistol tool (SHB-T1-016P)

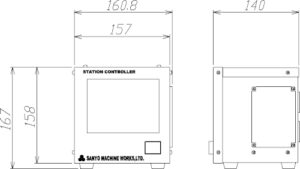

Station controller (SHB-SC)
